| Model Number : | XY6535 |
| Certification : | CE RoHS FCC |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 10000 per month |
| Delivery Time : | 30 days |
Custom MTK6771 Android 10 PCBA Motherboard
Products Specification
| CPU | Quad-core A53 1.3GHz | |
| OS | Android 5.1 | |
| Memory | 1GB+ 8GB/2 GB+ 16GB/3GB +32GB | |
| Display | 1920*1080 | |
| Camera | 13MP | |
| Video | Decode | 1080p 30fps H.264/H.265 |
| Encode | 1080p 30fps MPEG4 | |
| Network | FDD-LTE | B1/B3/B5/B8 |
| TDD-LTE | B38/B39/B40/B41 | |
| WCDMA | B1/B5/B8 | |
| TD-SCDMA | B34/B39 | |
| EVDO/CDMA | 850/900/1800MHz | |
| Wi-Fi | 802.11a/b/g/n | |
| Bluetooth | BLE 4.0 | |
| GNSS | GPS/GLONASS/BEIDOU | |
| Power | 3.5V-4.35V, 3.8V Type | |
| Sleep current | <10ma | |
| Operating current | TBD | |
| Working temperature | -20 ℃~+70 ℃ | |
Products Features

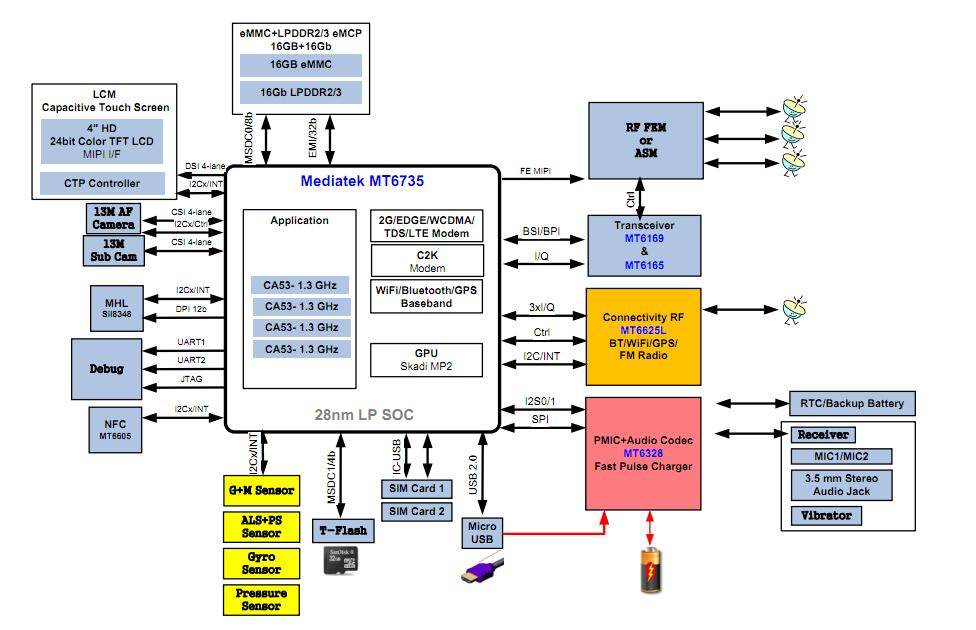

The MT6735 core board is a high-performance, Android-enabled 4G intelligent module based on MediaTek MT6735 platform, supporting LTE-FDD/LTE-TDD/WCDMA/TD-SCDMA/EVDO/CDMA/GSM and other systems /b/g/n, BT4.0LE near-field wireless communication, support GPS/GLONASS/Beidou multi-system satellite positioning, support a variety of voice and audio codecs, internal integration of Mali-T720 MP2 high-performance graphics engine, smooth playback of 1080P video, with multiple audio, video input and output interface and rich GPIO interface.
Our Service
1. Offer an OS customization service for the PCBA motherboard and an Android APP development in a very short time.
2. Provide free/paid source code.
3. Provide one stop full solution for android tablet pc, including, PCBA hardware, software, relative parts customization, for example housing/mold, camera, touch screen, display...
4. 24x7 hours engineer services
|
|
