Competitive Price Superior Technology
5 Years
| Ask Lasest Price | |
| Model Number : | TG5 |
| Certification : | CE RoHS FCC |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 10000 per month |
| Delivery Time : | 30 days |

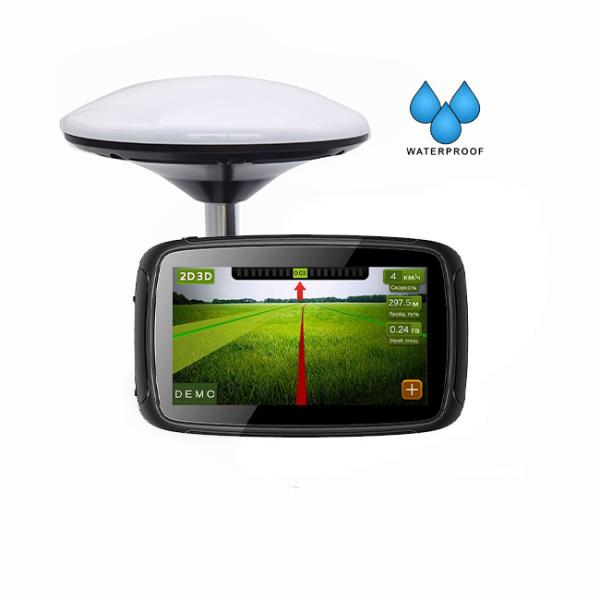

5 inch 1000nits Brightness Android 6.0 Agricultrual GPS Navigation for Tractor
Products Specification
| Product Name | Agricultrual GPS Navigation for Tractor |
| System | |
| Operating System | Android 6.0 |
| CUP | Cortex A53*4 1.3GHz |
| RAM | 1GB |
| ROM | 16GB |
| Externsion | Micro SD card |
| Display | |
| Size | 5 inch |
| Resolution | 800x480 |
| Brightness | 1000 cd/m2 |
| Touch Screen | Capacitive touch panel |
| Physical | |
| Dust and Water Proof | IP68 |
| Size (LxWxH) | 200x113x12mm |
| Weight | 0.9kgs |
| Environment | Operation: -10 C to +60 C Storage: -20 C to +70 C |
| GNSS Accuratcies | |
| Constellation | GPS/QZSS: L1 C/A, L1C, L2C, L5, L6 BDS: B1C, B1I, B2a, B2I, B3I GLONASS: L1, L2 Galileo: E1, E5a, E6 IRNSS: L5 SBAS: WAAS, EGNOS, MSAS, GAGAN, SDCM |
| Channels | 136 |
| Positioning accuracy | GNSS 2.5m CEP SBAS 2.0m CEP D-GNSS <1.0m CEP |
| Positioning Refresh Rate | MAX 20Hz |
| Time to first fix | Cold Start: 28s Hot Start: 1s |
| Speed and Accuracy | GNSS 0.1m/s CEP SBAS 0.05m/s D-GNSS 0.05m/s 1PPS 25ns |
| Communications | |
| Wifi | 802.11 b/g/n |
| Bluetooth | Bluetooth 4.0 |
| USB | Mini USB 2.0 |
| Serial Port (optional) | TTL 3.3V |
| RS232 (optional) | 5V |
| Battery | |
| Li-ion battery | 3000mAh |
| Voltage | 3.7V |
Features
1. A high-performance, multi-system dual-band navigation and positioning agriculture guidance system that supports GPS, Beidou, GLONASS, GALILEO and QZSS Satellite.
2. Come with window suction holder and headlebar aluminum 360 degree rotation adjustable mount.
3. With MTK Quad core 1GB RAM and 16GB Flash, Android 6.0 System.
4. Typically 1m accuracy or better , ideal for entry level Gps
guidance for grassland fertiliser spreading.
5. Pre-loaded professinal Field Bee/Field Navigator farm App for tractor.
6. The Agricultural GPS Navigation Screen Kit with external Roof mounted antenna on Tractor.
Software & Hardware Development Services
RuiHao PCBA Motherboard provides Embedded hardware development services which involve hardware low-level design, hardware simulation, Schematic derating, PCB layout, pre-post layout simulation, hardware stress analysis, board design, prototype manufacturing, board bring-up testing, hardware board testing and validation.
1. Offer an OS customization service and an Android APP development in a very short time.
2. Provide free/paid source code.
3. Provide one stop full solution for android tablet pc, including, PCBA hardware, software, relative parts customization, for example housing/mold, camera, touch screen, display...
4. 24x7 hours engineer services
|
|
