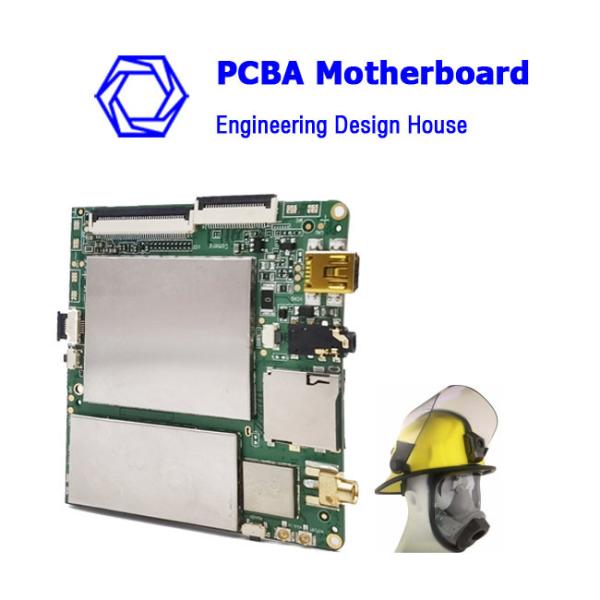

Custom Made Motherboards 1080p Camera GPS 4G LTE for Smart Helment
Products Specification
| product name | |
| Processor | ARM Cortex A53 octa-core 2.5GHz |
| Operating system | Android 8.1 |
| RAM | DDR 4GB |
| Memory | eMMC 64GB |
| Weight | 1135g |
| AR display module | |
| Display | Array type optical waveguide display |
| Field of view | 35º |
| Virtual screen size | Equivalent to watching 74-inch TV from 3m away |
| Rated brightness | 300nit |
| Infrared thermal imaging module | |
| Resolution | 384x288 |
| Response band | 8μm ~ 14μm |
| Image frequency-frame | 25Hz |
| Temperature measurement range | -20°C~120°C |
| Temperature measurement accuracy | +0.3°C within the specified range(2m by default) |
| Visible light camera module | |
| Maximum pixels | 13 megapixels |
| Maximum aperture | F2.0 |
| Field of view | 78° |
| Video resolution | 1080P@30fps |
| Data communication module | |
| Wi-Fi | IEEE 802.11 b/g/n , 2.4GHz |
| Bluetooth | BT 4.2, backward compatible with 3.0, 2.1, supporting BLE |
| Battery module | |
| Capacity | 5000mAh |
| Voltage | DC3.7~4.2V |
| Charging voltage | DC5.0V ±5% |
| Quick charge | Supporting 2A fast charging |
| Protective performance | |
| Absorbing collision energy | RF electromagnetic field radiated susceptibility |
| Penetration resistance | Complying with the requirements of penetration resistance test in GA 296-2001 |
| Electromagnetic shielding | SAR value < 0.05W/kg |
| ESD anti-interference | Complying with the requirements of ESD anti-interference in GB/T 17626.2-2006 |
| RF electromagnetic field radiated susceptibility | Complying with the requirements of ESD anti-interference in GB/T 17626.2-2006 |
Our Service
1. Offer an OS customization service for the PCBA motherboard and an Android APP development in a very short time.
2. Provide free/paid source code.
3. Provide one stop full solution for android tablet pc, including, PCBA hardware, software, relative parts customization, for example housing/mold, camera, touch screen, display...
4. 24x7 hours engineer services
|
|
