Competitive Price Superior Technology
5 Years
| Ask Lasest Price | |
| Model Number : | R3 |
| Certification : | CE RoHS FCC |
| Payment Terms : | T/T, Western Union, MoneyGram, Paypal |
| Supply Ability : | 10000 per month |
| Delivery Time : | 30 days |

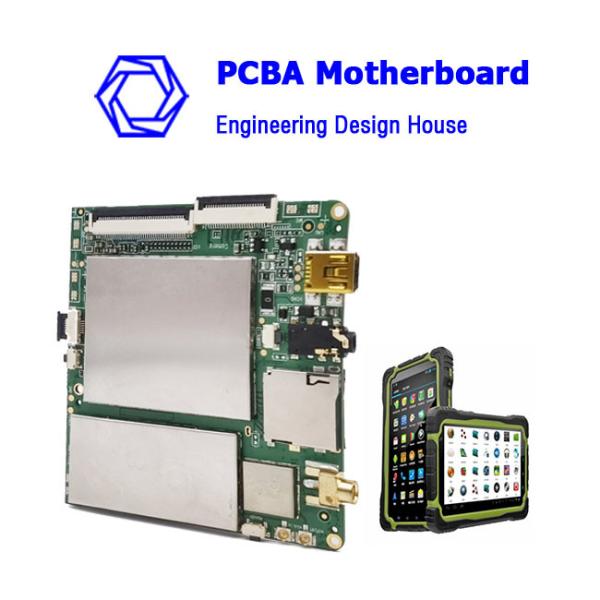

Custom Made Motherboards 1080p Camera GPS 4G LTE for Smart Helment
Products Specification
Hardware | ||||
CPU | ARM Cortex 1.5 GHz quad-core | |||
GPU | MTK6761 | |||
RAM | 3GB LPDDR3 | |||
Internal Memory | 32GB ROM | |||
External Memory | Micro SD card ( T-FLASH card), max 128GB | |||
Main Camera | 13.0MP(AF) with flash led | |||
Sub Camera | 5.0MP | |||
Battery | 14600mAh | |||
Display | 10.1 inch IPS/AFFS 1200*1920 FHD industrial 500nit Sunlight
Readable | |||
Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active
capacitive pen | |||
IO/Sensor/Navigation | ||||
SIM Card | 1.8/3.3V SIM card | |||
TF Card | Micro SD card ( T-FLASH card) ;max 128GB | |||
Headphone | 3.5mm (CTIA) | |||
Data interface | USB Type-C | |||
RS232 (optinal ) | Optional RS232 serial port, using 5pin micro one GPIO port | |||
Gravity sensor | support | |||
Motion sensor | support | |||
Direction Sensor | support | |||
Magnetic Field | support | |||
Gyro sensor | support | |||
Rotation Vector | support | |||
Light-sensor | support | |||
Acceleration sensor | support | |||
Charger | 5.0V 2A-10W | |||
Navigation | GPS+Beidor+AGPS/GPS+Glonass+AGPS | |||
Appearance | ||||
Size | 320*228*12mm(L×W×H) | |||
Weight | 760g | |||
Color & Material | Black(ABS+PC+TPU) | |||
Communications & Networking | ||||
Phone Call | GSM /WCDMA//VoLTE | |||
2G | GSM/CDMA 1X/EDGE/GPRS/WAP | |||
2G Band | GSM(B2/3/5/8) | |||
3G | WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps) | |||
3G Band | WCDMA(B1/2/5/8) | |||
4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink , 50Mbps uplink | |||
4G Band | TD-LTE(B38/39/40/41)；FDD LTE(B1/2/3/5/7/20) | |||
WI-FI | Dual-band (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac | |||
Bluetooth | 4.0 Low Energy (LE) | |||
Industrial & Reliability Design | ||||
Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g | |||
Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 | |||
Waterproof | Class 5 ( IEC 60529 ) | |||
Dustproof | Class 6 ( IEC 60529 ) | |||
Reliability | MTBF>5000h；MTTR | |||
Operating temperature | -20°C to 55°C | |||
Storage Temperature | -40°C to 80°C | |||
RH | 5% to 95% | |||
Operating Altitude | Max: 4,500 m(15,000 feet) | |||
Certification/OS/Software | ||||
Certification | 3C /FCC/CE/ROHS/IP65(IEC 60529) | |||
Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal),
Italian, German, Dutch, French, Polish, Romanian, Turkish,
Russian,Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew,
Simplified, Chinese,Chinese Traditional,etc | |||
OS | Andriod 5.1/7.0/9.0/10 | |||
Our Service
1. Offer an OS customization service for the PCBA motherboard and an Android APP development in a very short time.
2. Provide free/paid source code.
3. Provide one stop full solution for android tablet pc, including, PCBA hardware, software, relative parts customization, for example housing/mold, camera, touch screen, display...
4. 24x7 hours engineer services
|
|
