    Glonass Beidou Agricultural GPS Navigation Sat Nav GNSS 7 Inch For Tractor

    Ask Lasest Price
    Model Number : TG7063
    Certification : CE RoHS FCC
    Payment Terms : T/T, Western Union
    Supply Ability : 10000 per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

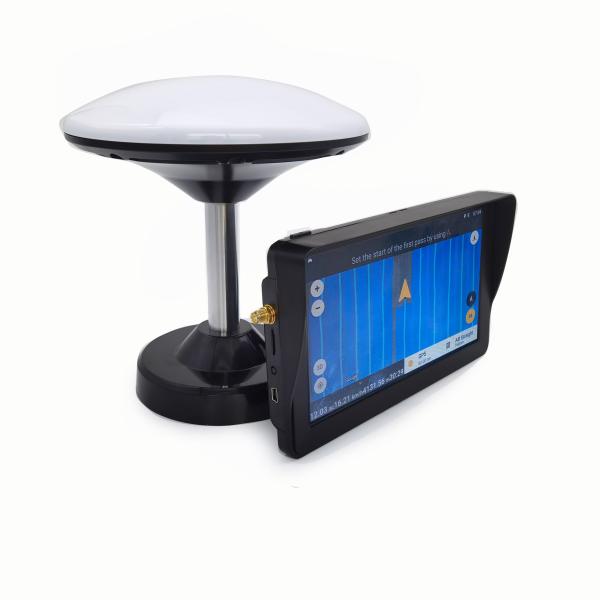

    Glonass Beidou Agricultural GPS Navigation Sat Nav GNSS 7 Inch For Tractor

    7 inch GNSS Glonass GPS Beidou Agricultural GPS Navigation for Tractor


    Products Specification

    NameAgricultural GPS Navigation for Tractor
    System
    OSAndroid OS 6.0
    CUPMTK Cortex A53*4 1.3GHz
    RAM1 GB
    ROM16 GB
    ExternsionTF card up to 64GB
    Display
    Size7"
    Resolution800x480 pixel
    Brightness500 NITS
    Touch ScreenG+G Capacitive touch panel
    Physical
    Dust and Water ProofNone
    Size (LxWxH)200x113x12mm
    Weight0.7kgs (without antenna)
    Environment

    Operation temperature: -10 C to +60 C

    Storage temperature: -20 C to +70 C

    GNSS moduel Accuratcies
    ConstellationGPS/QZSS: L1 C/A, L1C, L2C, L5, L6
    BDS: B1C, B1I, B2a, B2I, B3I
    GLONASS: L1, L2
    Galileo: E1, E5a, E6
    IRNSS: L5
    SBAS: WAAS, EGNOS, MSAS, GAGAN, SDCM
    Channels136 Channels
    Positioning accuracyGNSS 2.5m CEP
    SBAS 2.0m CEP
    D-GNSS <1.0m CEP
    Positioning Refresh Rate10Hz
    Time to first fixCold Start: 28s Hot Start: 1s
    Speed and AccuracyGNSS 0.1m/s CEP
    SBAS 0.05m/s
    D-GNSS 0.05m/s
    1PPS 25ns
    Communications
    Wifi802.11 b/g/n
    BluetoothBluetooth 4.0
    USBMini USB 2.0
    Serial Port (optional)TTL 3.3V
    RS232 (optional)5V
    Battery
    Li-ion battery2500mAh
    Voltage3.7V

    Features

    1. The Agricultural GPS Navigation is a high-performance, multi-system support GPS, Beidou, GLONASS, GALILEO and
    QZSS Satellite.
    2. Cigarette lighter power supply included.
    3. Android based for use with pre-loaded Field Bee/Field Navigator App.
    4. Typically 1m accuracy or better , ideal for entry level Gps guidance for grassland fertiliser spreading.
    5.
    The 7 inch 500nits brightness display is visitable under sunlight.





    Embedded Software & Hardware Development Services

    RuiHao PCBA Motherboard provides Embedded hardware development services which involve hardware low-level design, hardware simulation, Schematic derating, PCB layout, pre-post layout simulation, hardware stress analysis, board design, prototype manufacturing, board bring-up testing, hardware board testing and validation.

    1. Offer an OS customization service and an Android APP development in a very short time.

    2. Provide free/paid source code.

    3. Provide one stop full solution for android tablet pc, including, PCBA hardware, software, relative parts customization, for example housing/mold, camera, touch screen, display...

    4. 24x7 hours engineer services
