    9in 500nit Agricultural GPS Navigation Android Positioning 20Hz Farm For Tractor

    Ask Lasest Price
    Model Number : TG96
    Certification : CE RoHS FCC
    Payment Terms : T/T, Western Union
    Supply Ability : 10000 per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    9in 500nit Agricultural GPS Navigation Android Positioning 20Hz Farm For Tractor

    9 inch Android Positioning Farm Agricultural GPS Navigation for Tractor


    Products Specification


    Product NameFarm Agricultural GPS Navigation
    System
    Operating SystemAndroid 6.0
    CUPCortex A53*4 1.3GHz
    RAM1GB/2G
    ROM16GB/32G
    ExternsionTF support 64G
    Display
    Size9 inch
    Resolution800x480 pixel
    Brightness400 cd/m2
    Touch ScreenHigh Sensitive Capacitive touch panel
    Physical
    Dust and Water ProofNone
    Size (LxWxH)240x150x20mm
    Weight1.3kgs
    Environment

    Operation: -10 C to +60 C

    Storage: -20 C to +70 C

    GNSS Accuratcies
    ConstellationGPS/QZSS: L1 C/A, L1C, L2C, L5, L6
    BDS: B1C, B1I, B2a, B2I, B3I
    GLONASS: L1, L2
    Galileo: E1, E5a, E6
    IRNSS: L5
    SBAS: WAAS, EGNOS, MSAS, GAGAN, SDCM
    Channels136
    Positioning accuracyGNSS 2.5m CEP
    SBAS 2.0m CEP
    D-GNSS <1.0m CEP
    Positioning Refresh RateMAX 20Hz
    Time to first fixCold Start: 28s Hot Start: 1s
    Speed and AccuracyGNSS 0.1m/s CEP
    SBAS 0.05m/s
    D-GNSS 0.05m/s
    1PPS 25ns
    Communications
    Wifi802.11 b/g/n
    BluetoothBluetooth 4.0
    USBMini USB 2.0
    Serial Port (optional)TTL 3.3V
    RS232 (optional)5V
    Battery
    Li-ion battery2000mAh
    Voltage3.7V


    Features

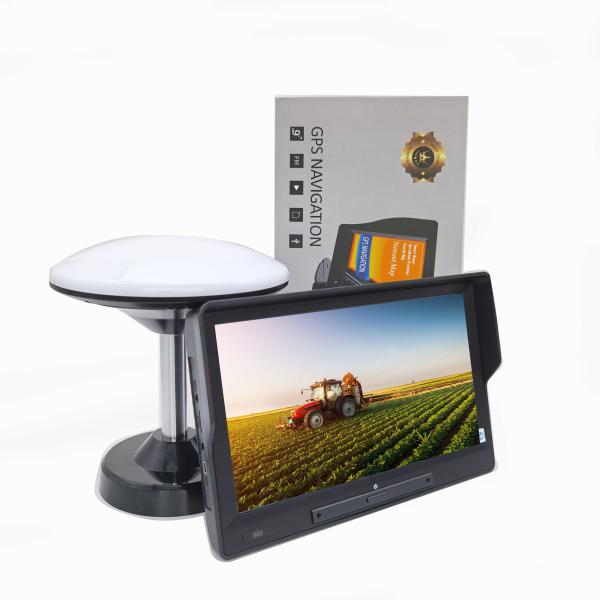

    1. The Agricultural GPS Navigation Screen Kit with external Roof mounted antenna.
    2.
    Easy setup for your equipment with durable tractor mounts
    3. Typically 1m accuracy or better , ideal for entry level Gps guidance for grassland fertiliser spreading.
    4.
    Android 6.0 OS, 1GB RAM 16GB flash preload tractor APPs Field navigation real time via Google Maps.
    5. Able to Field Measuring and Field Navigation
    6. 9 inch screen have good viewing size.







    Embedded Software & Hardware Development Services

    RuiHao PCBA Motherboard provides Embedded hardware development services which involve hardware low-level design, hardware simulation, Schematic derating, PCB layout, pre-post layout simulation, hardware stress analysis, board design, prototype manufacturing, board bring-up testing, hardware board testing and validation.

    1. Offer an OS customization service and an Android APP development in a very short time.

    2. Provide free/paid source code.

    3. Provide one stop full solution for android tablet pc, including, PCBA hardware, software, relative parts customization, for example housing/mold, camera, touch screen, display...

    4. 24x7 hours engineer services
