Competitive Price Superior Technology
5 Years
| Ask Lasest Price | |
| Model Number : | R3 |
| Certification : | CE RoHS FCC |
| Payment Terms : | T/T, Western Union, MoneyGram, Paypal |
| Supply Ability : | 10000 per month |
| Delivery Time : | 30 days |

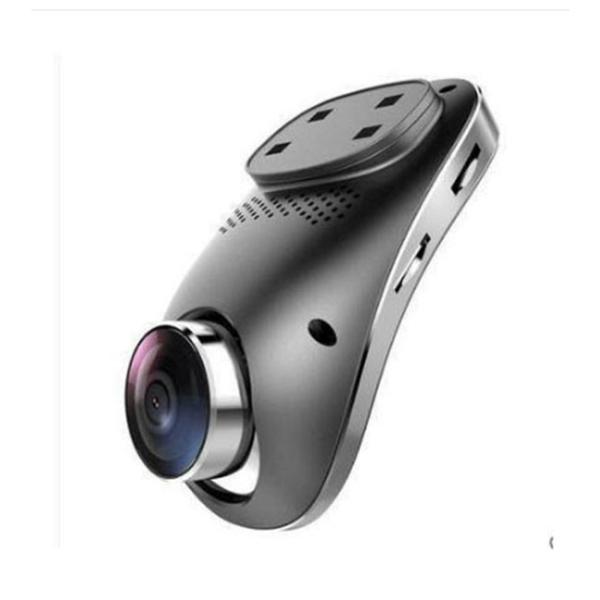

WCDMA 4G LTE 1080p Camera GPS Androd Motherboard Development for Car Tracker
Products Specification
| Name | Androd Motherboard Development | |
| General | Display | No |
| Resolution | No | |
| System | OS | Android 8.1 |
| CPU | A quad core ARM Cortex A53, 1.5GHz processor | |
| SDRAM | DDR3 1GB | |
| NAND Flash | Nand Flash 8GB | |
| I/O | Speaker | Max 1w@8ohm |
| micphone | yes | |
| Momery Slot | TF slot | |
| Mini USB | USB 2.0 high speed, USB Host | |
| SMA slot | for antenna | |
| AVIN | 2.5mm | |
| Function | GPS | GPS L1/BD, B1/GLONASS, GS/SBAS |
| Wi-Fi | 2.4G WLAN 802.11b/g/n | |
| G-sensor | support 3-axis sensor | |
| Bluetooth | support bluetooth 4.2 | |
| ADAS via software | Optional | |
| FM transmitter | support 87.5-108mhz | |
| Network Frequency | GSM: 900M(B8)/1800M (B3) WCDMA: 2100M(B1)/900M(B8) FDD-LTE: 2100M(B1)/1800M(B3) TDD-LED: 2300M(B40) | |
| Apps | Google apps available | |
| Power | Car adapter | INPUT DC 12-24V,OUTPUT,DC 5V /1.5A |
| Battery | 1000MAH/ 3.7V | |
| Via Acc cable (optional) | 12v to 5v ACC cable | |
| Camera | Front Camera | 1080p |
| back recording &parking camera | 720P AHD | |
Products Features
1. The MTK PCBA Motherboard integrates high-speed wireless communication technologies, dual bands 2.4G and 5G Wi-Fi, Bluetooth 4.0 and accurate positioning satellites GPS.
2. Sunlight Readable LCD and capasitive touch screen
3. It is instegrated with an user-accessible MicroSD slot to extend the storage, external high-definition back viewing/recording camera.Also client can custom it integrated USB Host, RS232 port connecting barcode scanner, a card reader, a powerful FRID reader and more devices.
Our Service
1. Offer an OS customization service for the PCBA motherboard and an Android APP development in a very short time.
2. Provide free/paid source code.
3. Provide one stop full solution for android tablet pc, including, PCBA hardware, software, relative parts customization, for example housing/mold, camera, touch screen, display...
4. 24x7 hours engineer services
|
|
