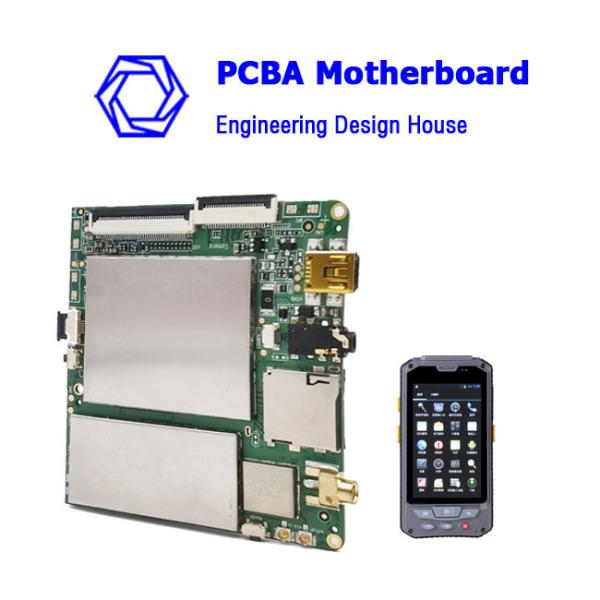

Custom Made Motherboards 1080p Camera GPS 4G LTE for Smart Helment
Products Specification
| Product Name:Custom Made Motherboards | |||
| PERFORMANCE CHARACTERSTICS | |||
| CPU | MTK6771 Cortex A73 2.3 GHz octa-core | ||
| Operating System | Android 10.0 | ||
| Storage | 4GB RAM/64GB ROM, MicroSD(max 256GB expansion) | ||
| USER ENVIRONMENT | |||
| Operating Temp. | -20℃ to 50℃ | ||
| Storage Temp. | -20℃ to 70℃ | ||
| Humidity | 5%RH to 95%RH(non-condensing) | ||
| Drop Specifications | 5ft./1.5 m drop to concrete across the operating temperature range | ||
| Sealing | IP65, IEC compliance | ||
| ESD | ±15kv air discharge, ±8kv direct discharge | ||
| DEVELOPMENT ENVIRONMENT | |||
| SDK | Handheld-Wireless Software Development Kit | ||
| Language | Java | ||
| Environment | Android Studio or Eclipse | ||
| DATA COMMUNICATION | |||
| WWAN | TDD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4, 7, 17, 20; | ||
| WCDMA(850/1900/2100MHz); | |||
| GSM/GPRS/Edge (850/900/1800/1900MHz); | |||
| WLAN | 2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac | ||
| WPAN | Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.2 | ||
| GPS | GPS(embedded A-GPS), accuracy of 5 m | ||
| DATA CAPTUER | |||
| BARCODE READER(OPTIONAL) | |||
| 2D barcode | 2D CMOS Imager | Zebra SE4710/Mindeo ME5600 | |
| Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc. | ||
| COLOR CAMERA | |||
| Resolution | Rear 13 megapixel, front 5.0 megapixel | ||
| Lens | Auto-focus with LED flash | ||
| RFID READER(OPTIONAL) | |||
| RFID NFC | Frequency | 13.56MHz | |
| Protocol | ISO 14443A&15693, NFC-IP1, NFC-IP2 | ||
| R/W Range | 2cm to 5cm | ||
| RFID UHF | Frequency | 865~868MHz or 920~925MHz | |
| Protocol | EPC C1 GEN2/ISO 18000-6C | ||
| Antenna Gain | Circular antenna(4dBi) | ||
| R/W Range | 20 m(tags and environment dependent) | ||
Our Service
1. Offer an OS customization service for the PCBA motherboard and an Android APP development in a very short time.
2. Provide free/paid source code.
3. Provide one stop full solution for android tablet pc, including, PCBA hardware, software, relative parts customization, for example housing/mold, camera, touch screen, display...
4. 24x7 hours engineer services
|
|
